FC 1000

FC 1000

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 1000 (800)
Stand-by output (LTP) 400V kVA (kW) 1100 (880)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 100
Fuel consumption at 75% load l/h 150
Fuel consumption at 100% load l/h 200
Dimensions without soundproof canopy
Length x Width x Height (mm) 4300X2000X2400
Weight (Kg) 8150
Tank Capacity (L) 120

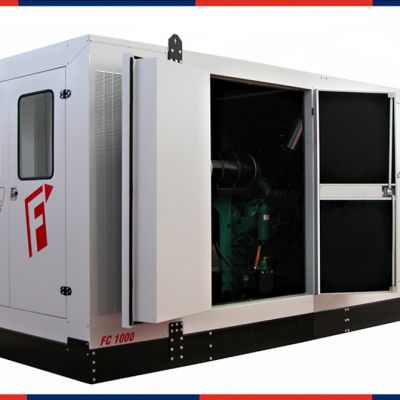

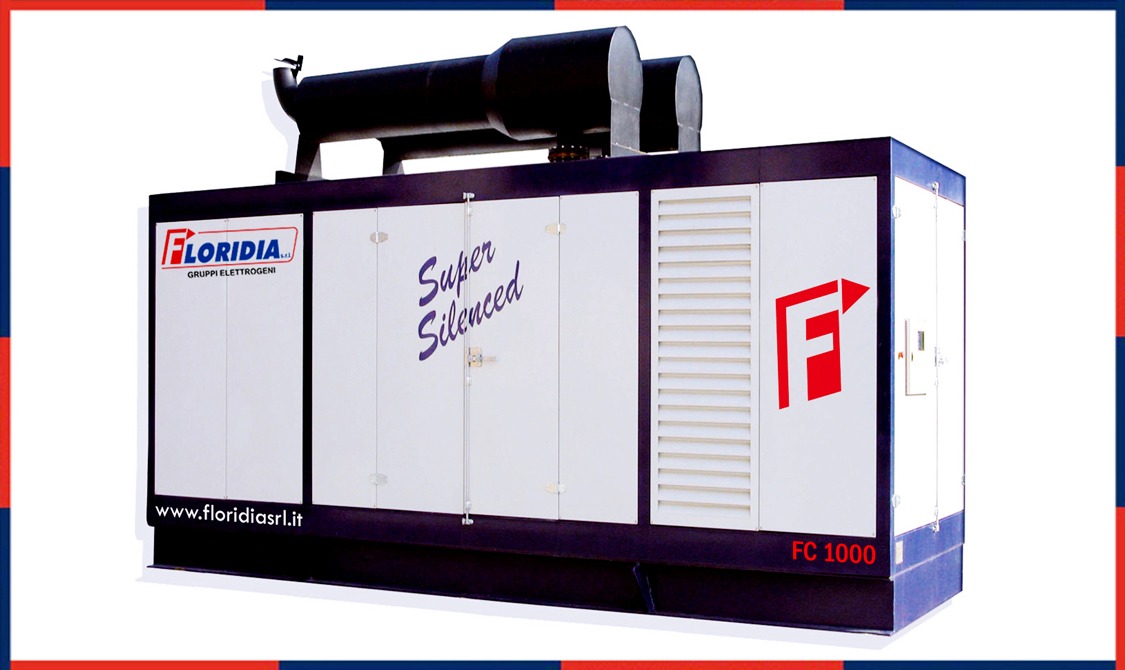

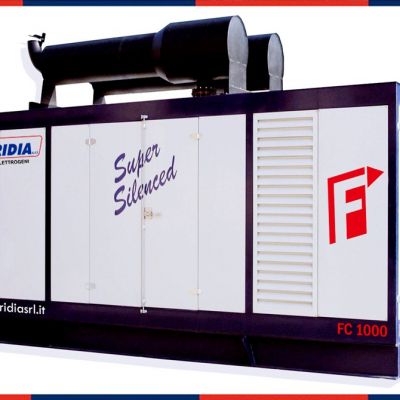

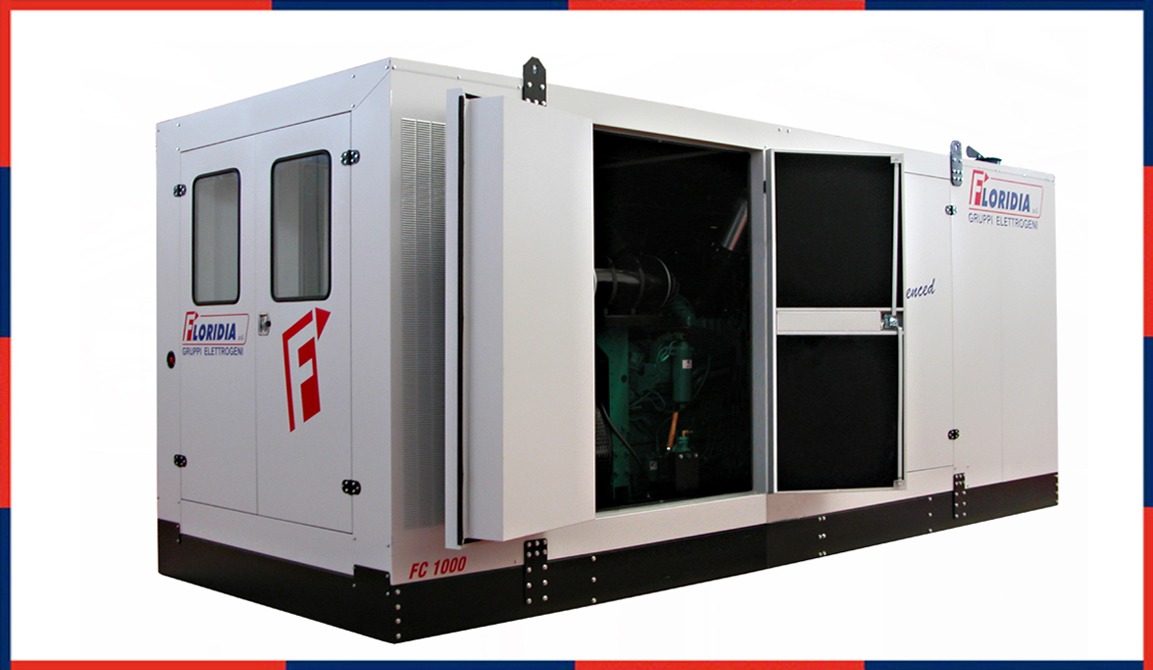

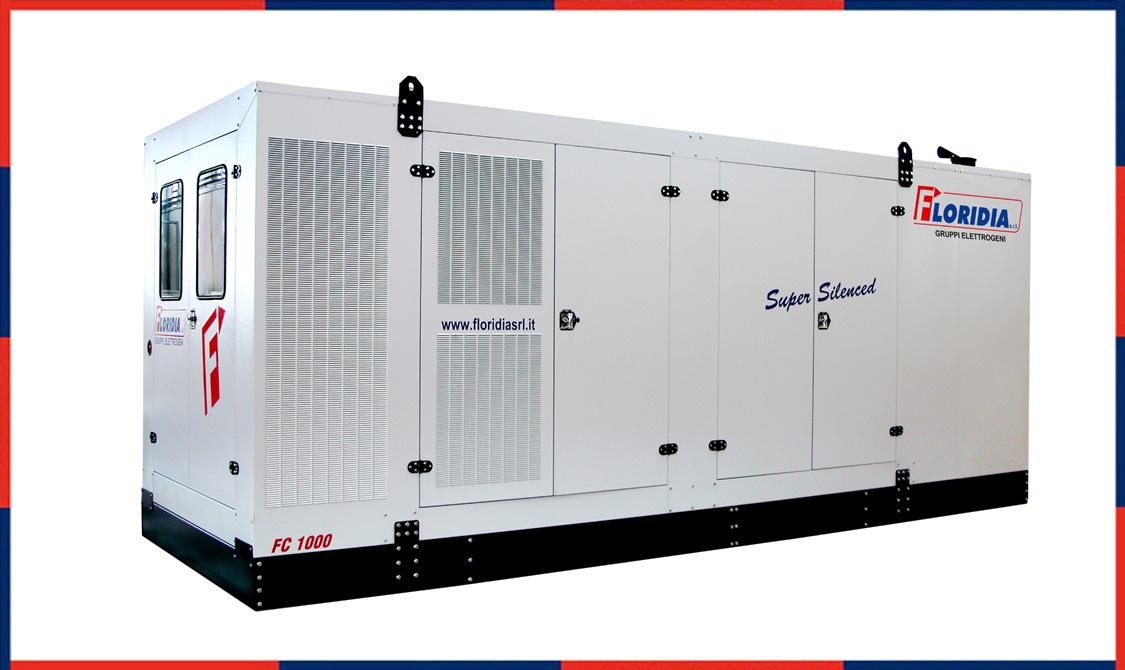

Dimensions with soundproof canopy
Length x Width x Height mm. 7000x2400x3500
Weight (Kg) 10850
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer Cummins
Stand-by output (LTP) kWm 970
Continuous output (PRP) kWm 880
Refrigerant liquid capacity (max) 124
Cooling system Water
Speed governor Electronic
Aspiration TAA
Starting system 24V
Displacement cm³ 30480
Num of cylinders and arrangement V 12
Model QST30G4
Lubricating oil capacity (max) L 154
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
Categorie prodotto: Generator sets
