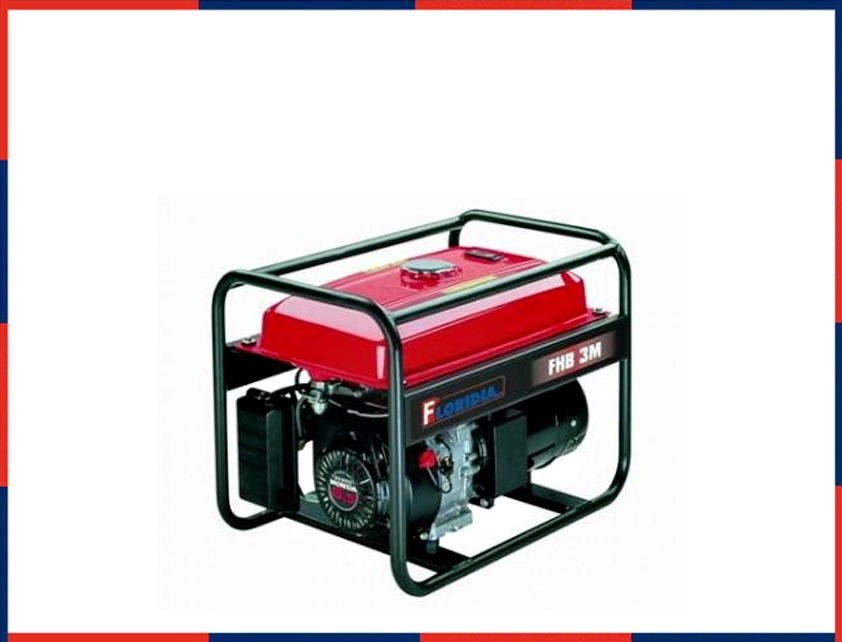

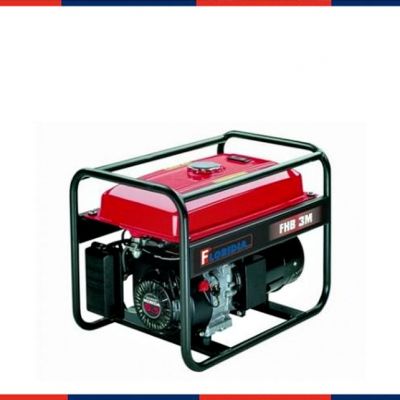

RECOIL START VERSION
Petrol engine driven generating set equipped with recoil starter for starting.
230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection
400V.: n. 1 voltmeter, n.1 three phase socket, n.1 single phase socket and thermal protection.

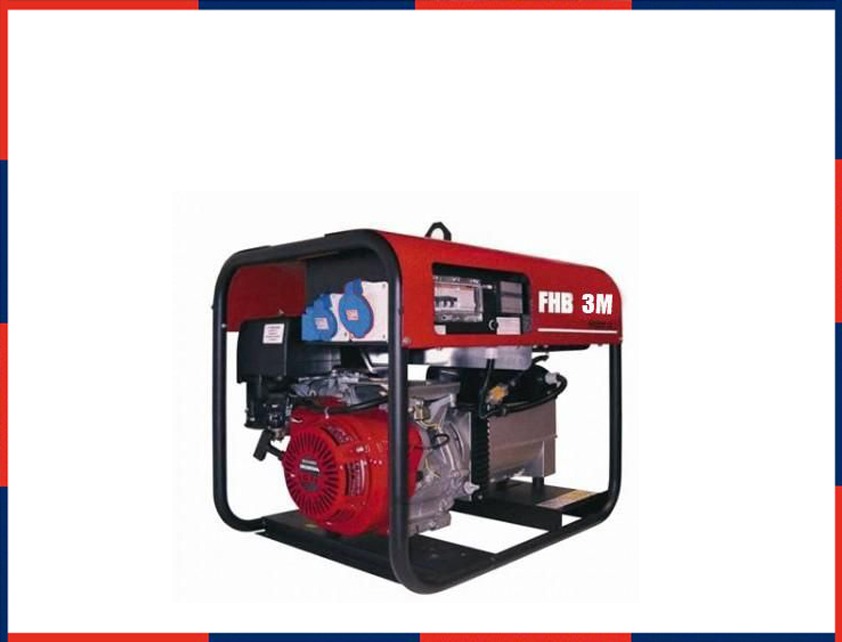

STANDARD VERSION
Petrol engine driven generating set equipped with control panel for starting or stopping and battery lodged in the base.
230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection
400V.: n. 1 voltmeter, n.1 three phase socket, n.1 single phase socket and thermal protection.
AUTOMATIC START VERSION
Petrol engine driven generating set mounted on a electro welded steel base with anti vibration mounts, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.
Data sheet | General features |
---|---|
Continuous output (PRP) 400V kVA (kW) | 2.7(2.1) |
Stand-by output (LTP) 400V kVA (kW) | 3(2.4) |
Phases | 1+N |
Frequency (Hz) | 50 |
Power factor cos φ | 0.8 |
Fuel consumption at 75% load l/h | 0.9 | Dimensions without soundproof canopy |
Length x Width x Height (mm) | 620x400x500 |
Weight (Kg) | 40 |
Tank Capacity (L) | 3.6 | Engine |
Manufacturer | Honda |
Continuous output (PRP) kWm | 3.2 |
Starting system | Manual/Electric |
Displacement cm³ | 163 |
Num of cylinders and arrangement | 1 |
Model | GX 160 | Alternator |
Type | Synchronous |
Protection degree | 21 |
Isolation | H |
Regulation | Condenser |
