RECOIL START VERSION

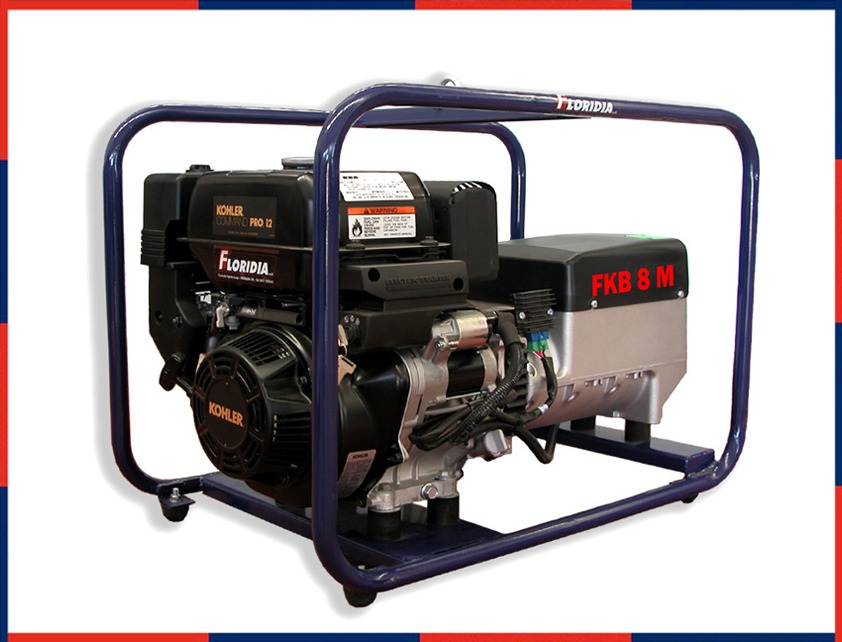

Petrol engine driven generating set equipped with recoil starter for starting.
230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection
STANDARD VERSION
Petrol engine driven generating set equipped with control panel for starting or stopping and battery lodged in the base.
230V.: n. 1 voltmeter, n. 2 single-phase sockets and thermal protection
AUTOMATIC START VERSION
Petrol engine driven generating set mounted on a electro welded steel base with anti vibration mounts, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.
Data sheet | General features |
---|---|
Phases | 1+N |
Frequency (Hz) | 50 |
Power factor cos φ | 0.8 |
Fuel consumption at 75% load l/h | 2.1 |
Continuous output (PRP) 230V kVA (kW) | 8(6.4) |
Stand-by output (LTP) 230V kVA (kW) | 9.4(7.6) | Dimensions without soundproof canopy |
Length x Width x Height (mm) | 750x550x550 |
Weight (Kg) | 94 |
Tank Capacity (L) | 7 | Engine |
Manufacturer | KOHLER |
Starting system | Manual/Electric |
Displacement cm³ | 429 |
Model | CH440 | Alternator |
Type | Synchronous |
Protection degree | 21 |
Isolation | H |
Regulation | Condenser |
