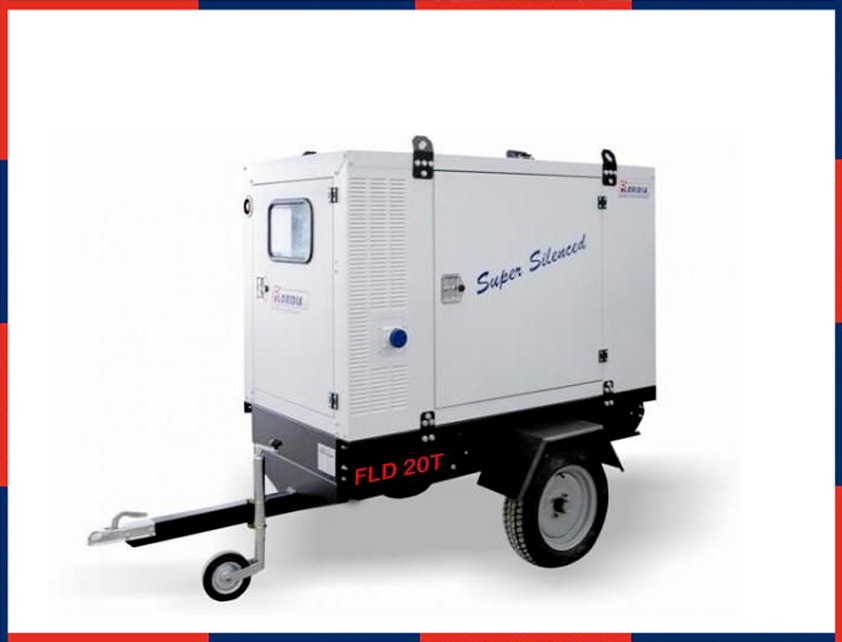

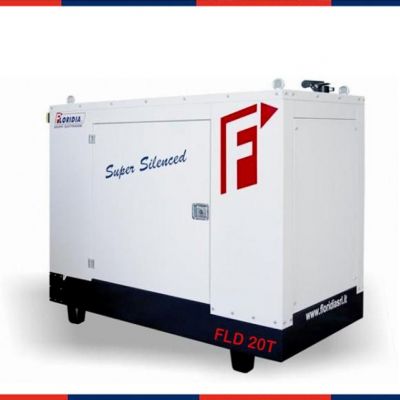

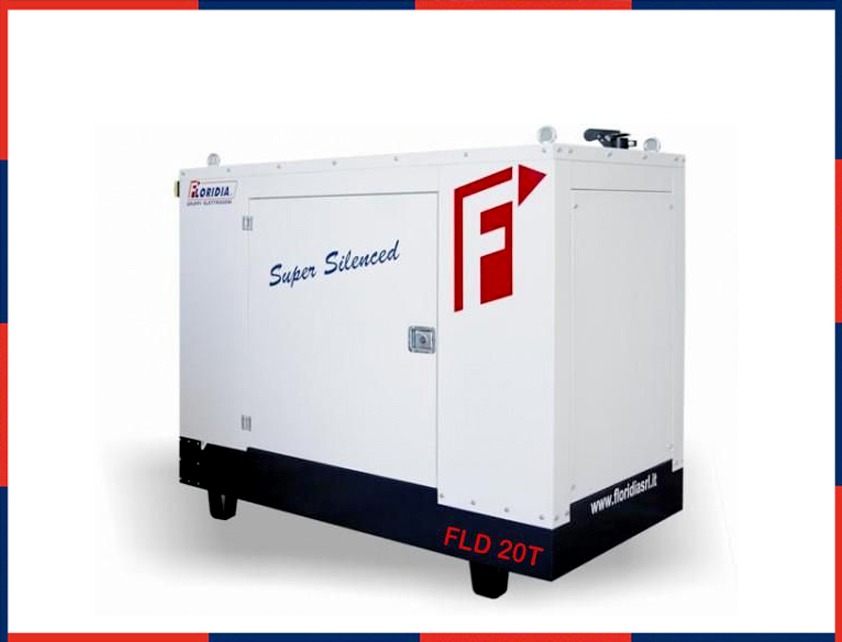

FLD 20 T

FLD 20 T

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with manual control panel, voltmeter, magneto thermic switch and sockets.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the commons engine and alternator faults.




Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 18.8 (15)
Stand-by output (LTP) 400V kVA (kW) 20.3 (16.3)
Phases 3 N
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 100% load l/h 4
Dimensions without soundproof canopy
Length x Width x Height (mm) 1250x750x800
Weight (Kg) 250
Tank Capacity (L) 20
Dimensions with soundproof canopy
Length x Width x Height mm. 1600x900x1350
Weight (Kg) 370
Tank Capacity (L) 20
Noise level dB(A) at 7m -/ 69
Engine
Manufacturer Lombardini
Continuous output (PRP) kWm 17.1
Starting system 12 V
Displacement cm³ 1248
Num of cylinders and arrangement 2 in line
Model 9 LD 625/2
Lubricating oil capacity (max) L 2.8
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Compound
