FP 900

FP 900

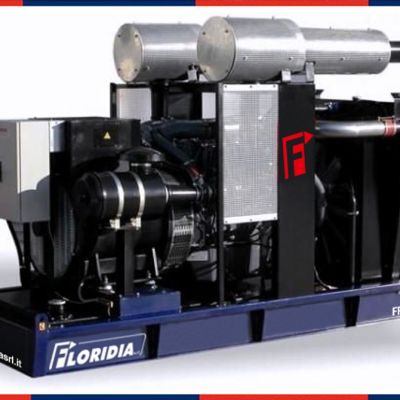

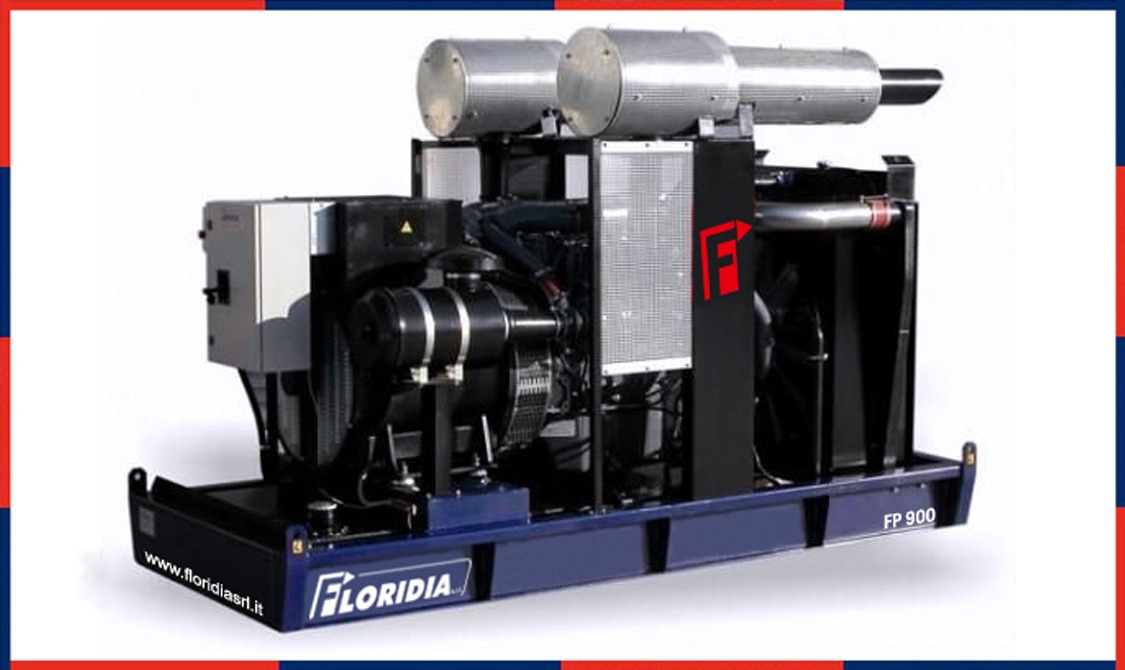

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with manual control panel, voltmeter, magneto thermic switch and sockets.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 911 (728)
Stand-by output (LTP) 400V kVA (kW) 1002 (802)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 98
Fuel consumption at 75% load l/h 143
Fuel consumption at 100% load l/h 195
Dimensions without soundproof canopy
Length x Width x Height (mm) 4398x1752x2210
Weight (Kg) 7144
Tank Capacity (L) 120

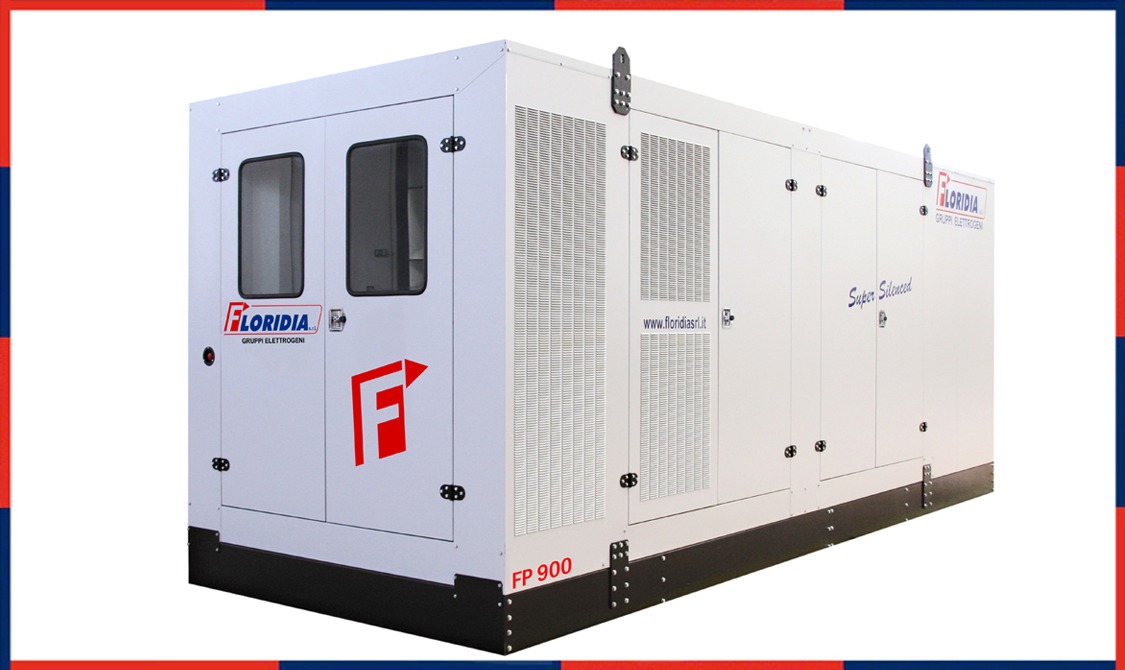

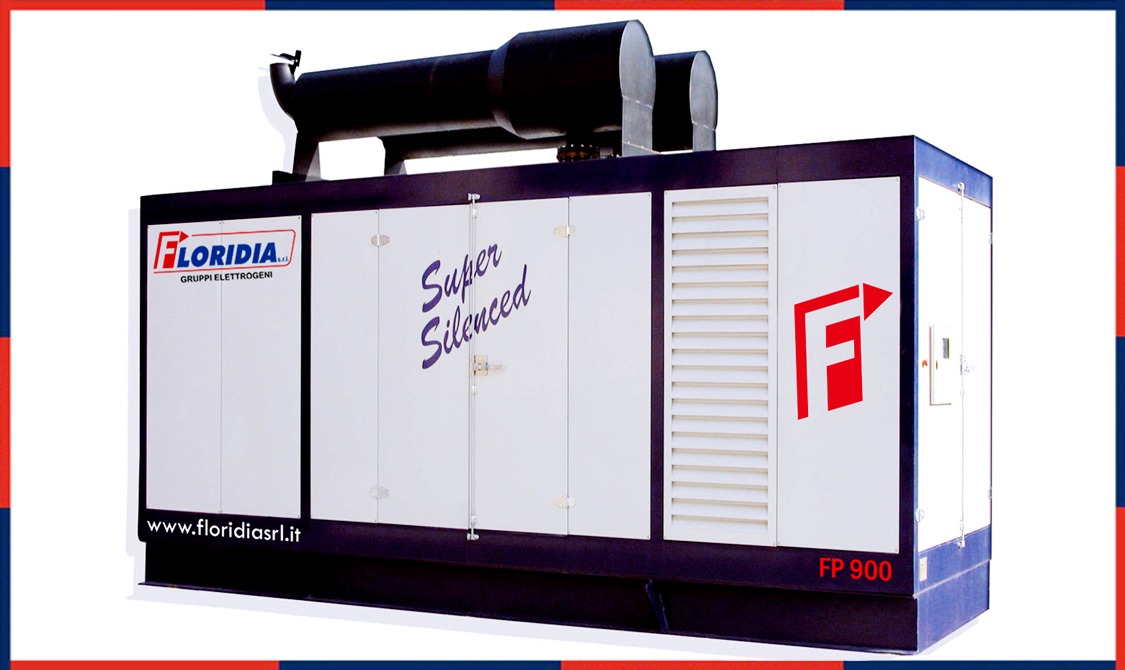

Dimensions with soundproof canopy
Length x Width x Height mm. 6550x1900x3200
Weight (Kg) 10012
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer Perkins
Stand-by output (LTP) kWm 844
Continuous output (PRP) kWm 767
Refrigerant liquid capacity (max) 143
Cooling system Liquid
Speed governor Electronic
Aspiration TAA
Starting system 24V
Displacement cm³ 30561
Num of cylinders and arrangement 8 in line
Model 4008TAG1A
Lubricating oil capacity (max) L 153
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
