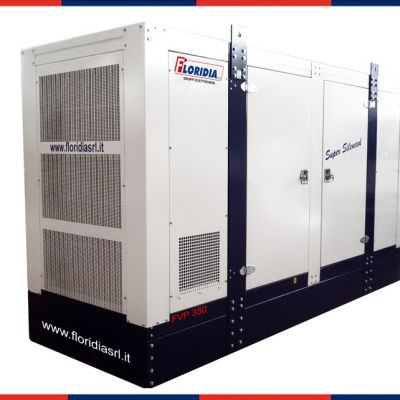

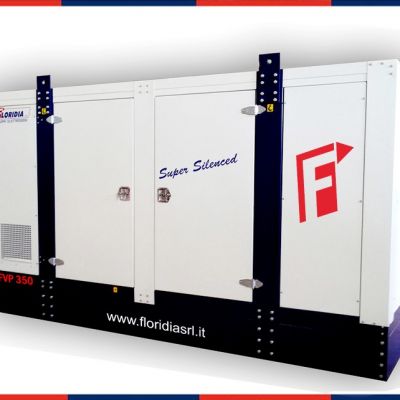

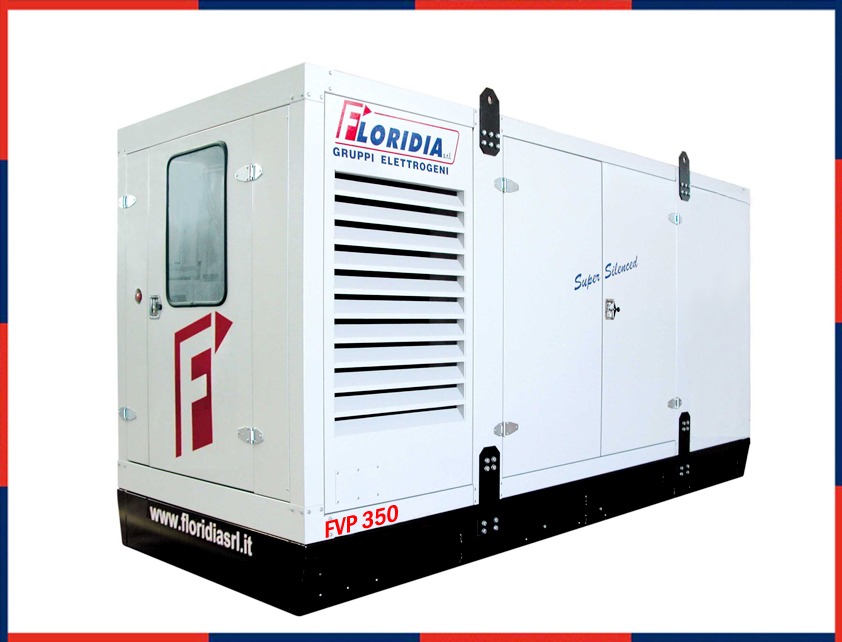

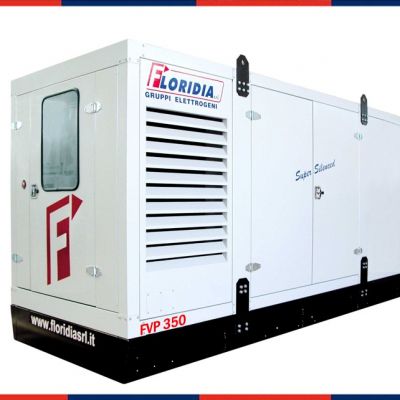

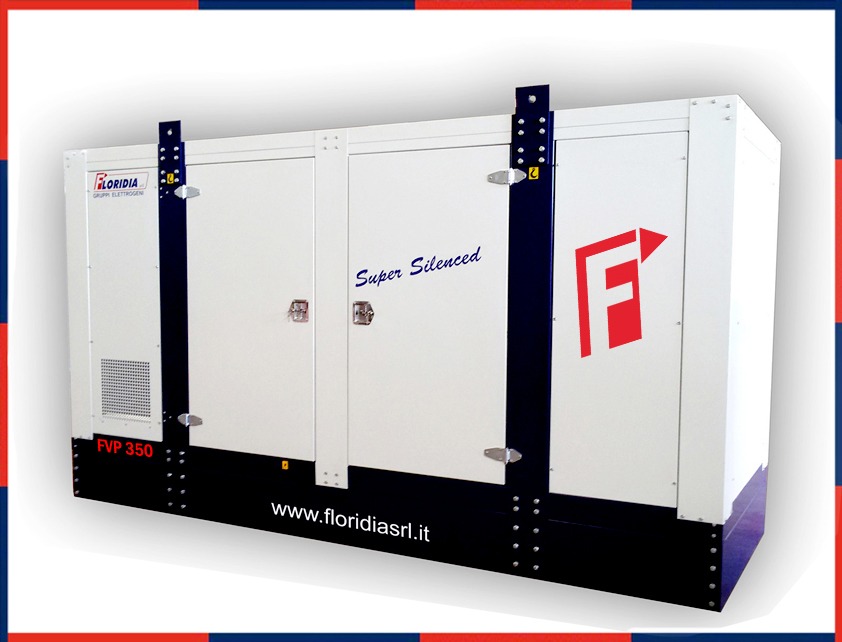

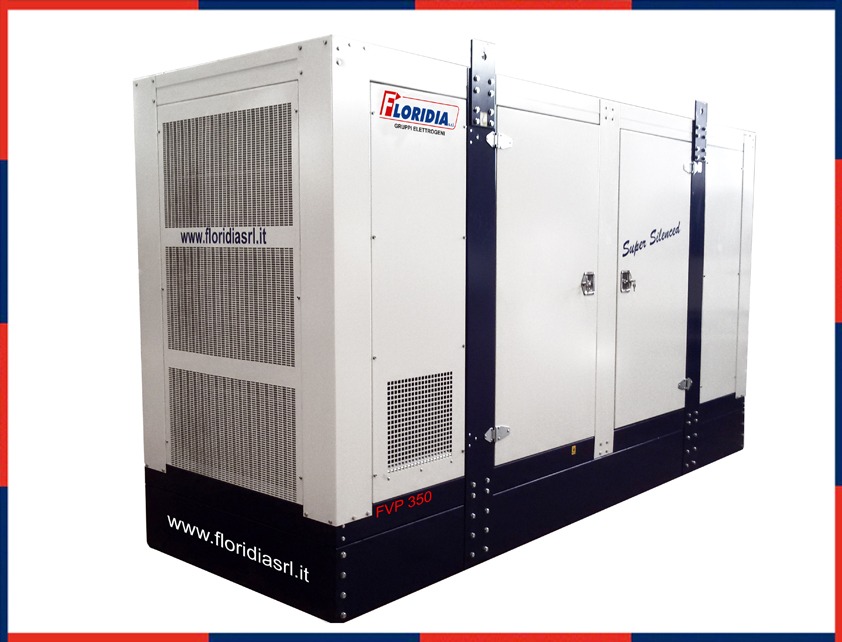

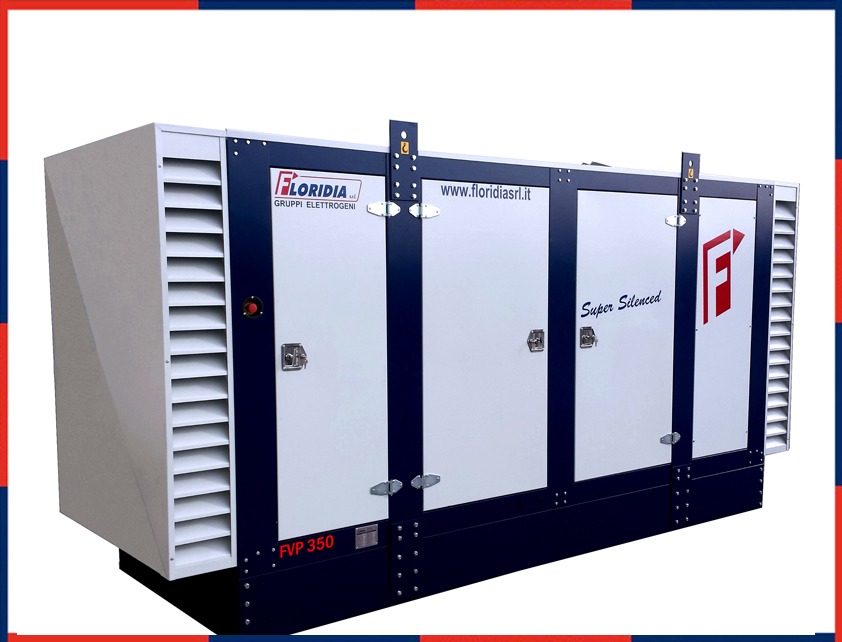

FVP 350

FVP 350

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 350 (280)
Stand-by output (LTP) 400V kVA (kW) 385 (308)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 50% load l/h 36,4
Fuel consumption at 75% load l/h 52,5
Fuel consumption at 100% load l/h 69,3
Dimensions without soundproof canopy
Length x Width x Height (mm) 3300X1400X1900
Weight (Kg) 2820
Tank Capacity (L) 120
Dimensions with soundproof canopy
Length x Width x Height mm. 4260X1600X2205
Weight (Kg) 3770
Tank Capacity (L) 120
Noise level dB(A) at 7m -/ 70
Engine
Manufacturer Volvo Penta
Stand-by output (LTP) kWm 333
Continuous output (PRP) kWm 303
Refrigerant liquid capacity (max) 24
Cooling system Liquid
Speed governor Electronic
Aspiration TAA
Starting system 24V
Displacement cm³ 12780
Num of cylinders and arrangement 6 in line
Model TAD 1342 GE
Lubricating oil capacity (max) L 36
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
