FY 40

FY 40

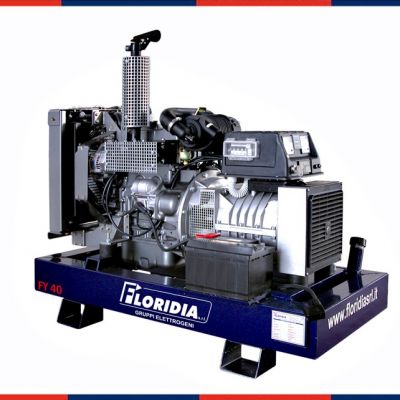

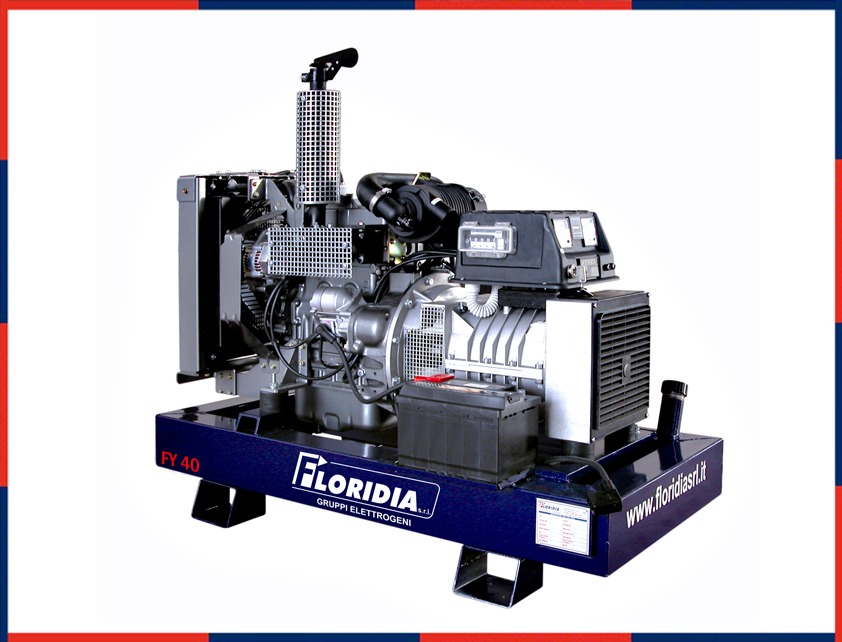

STANDARD VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, exhaust silencer, battery lodged in the base, equipped with manual control panel, voltmeter, amperometer, frequency meter, hour meter, magneto thermic switch, electronic card for warning and protection against the common engine and alternator faults.

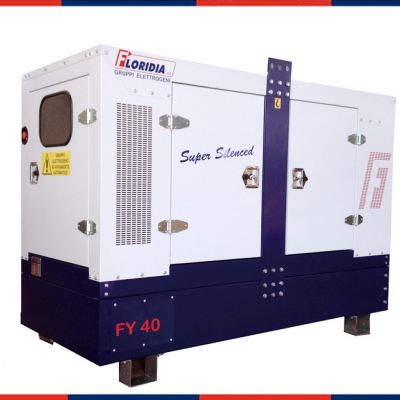

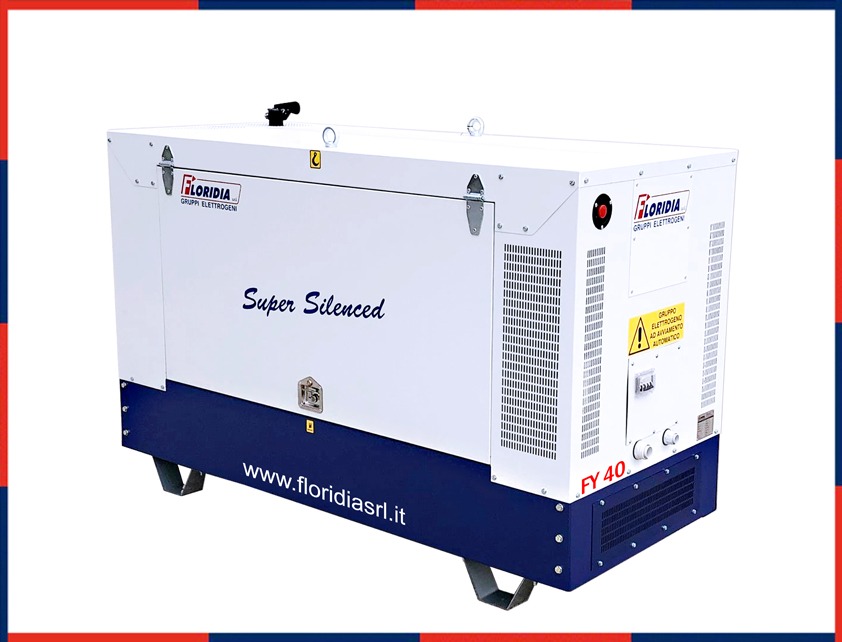

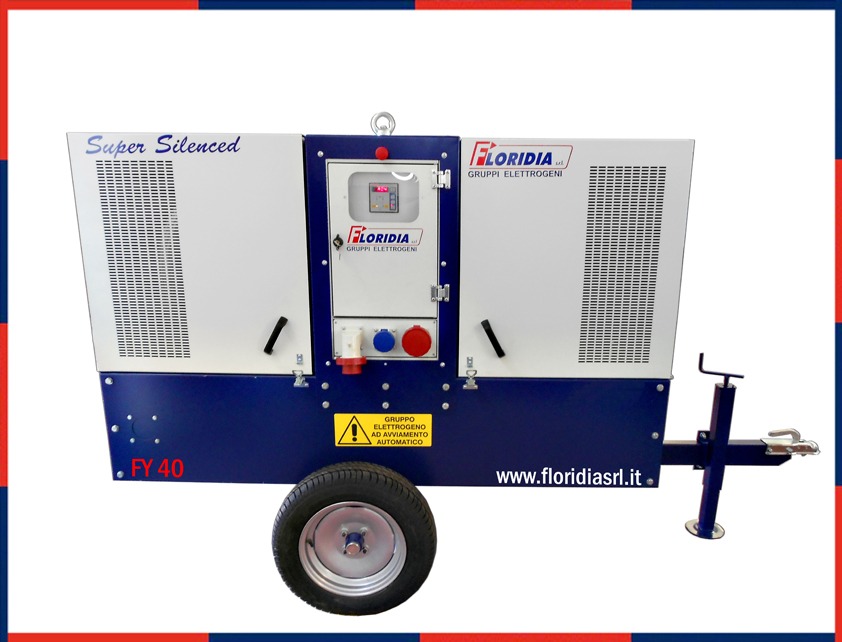

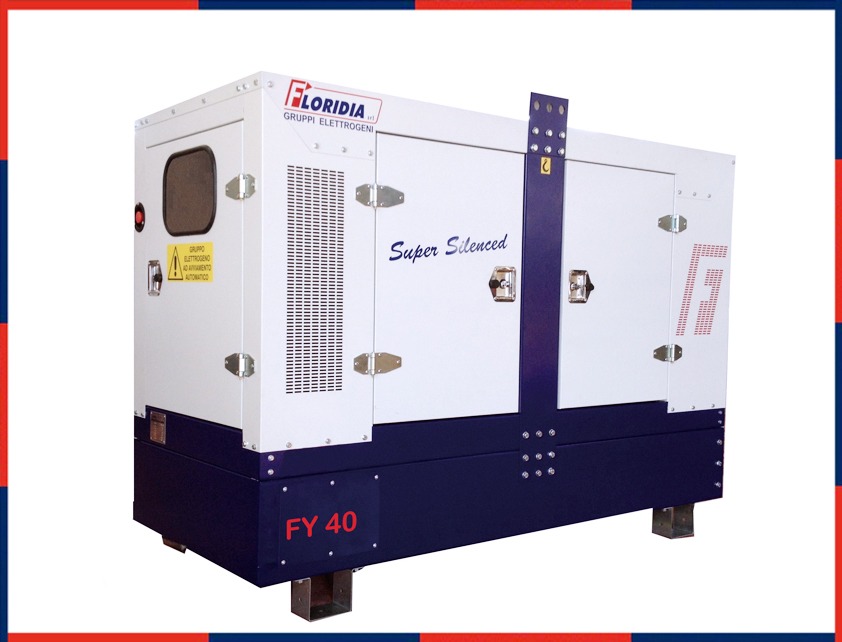

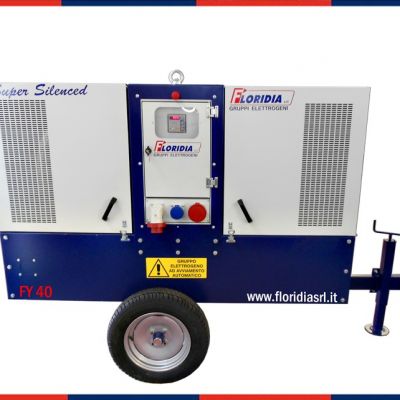

AUTOMATIC START VERSION

Diesel engine driven generating set mounted on a electro welded steel base with anti vibration mounts, fuel tank incorporated, battery lodged in the base, equipped with automatic start control panel complete with automatic battery charger device having the function to start the generator after a few seconds in the event of a mains supply interruption and vice versa. It also has the function of warning and protection against the common engine and alternator faults.


Data sheet
General features
Continuous output (PRP) 400V kVA (kW) 40 (32)
Stand-by output (LTP) 400V kVA (kW) 44 (35.2)
Phases 3
Frequency (Hz) 50
Power factor cos φ 0.8
Fuel consumption at 75% load l/h 8,7
Fuel consumption at 100% load l/h 11,6
Dimensions without soundproof canopy
Length x Width x Height (mm) 1500x750x900
Weight (Kg) 520
Tank Capacity (L) 50
Dimensions with soundproof canopy
Length x Width x Height mm. 2000x1000x1400
Weight (Kg) 730
Tank Capacity (L) 50
Noise level dB(A) at 7m -/ 69
Engine
Manufacturer Yanmar
Stand-by output (LTP) kWm 41,7
Continuous output (PRP) kWm 37,7
Speed governor Mechanical
Starting system 12 V
Displacement cm³ 3319
Num of cylinders and arrangement 4 in series
Model 4TNV98TGB
Lubricating oil capacity (max) L 10.5
Alternator
Type Synchronous
Protection degree 21
Isolation H
Regulation Electronic
Categorie prodotto: Generator sets
